PAH-F - The trailer with the fixed Micro-Hub Box

The trailer allows a larger loading volume than the PAH and can be towed by the KYBURZ DXP or DXC.

The fix box trailer has a payload of up to 137 kg - in addition, the cargo space is weather protected. Due to the overrun brake, a total weight of up to 200 kg. is possible.

Technical specifications

Tare weight 63 / 66 kg (Endumax- / Alu-Box)
Allowable total weight 200 kg
max. payload 134 / 137 kg (Endumax- / Alu-Box)
Max. drawbar load 16 kg
Dimension: (LxWxH) 1860x950x1540 mm
Max. Speed 50 km/h
Leergewicht 63 / 66 kg (Endumax- / Alu-Box)
Zul. Gesamtgewicht 200 kg
max. Zuladung 134 / 137 kg (Endumax- / Alu-Box)
Max. Deichsellast 16 kg
Masse (LxBxH) 1860x950x1540 mm
Max. Geschwindigkeit 50 km/h
Price offer

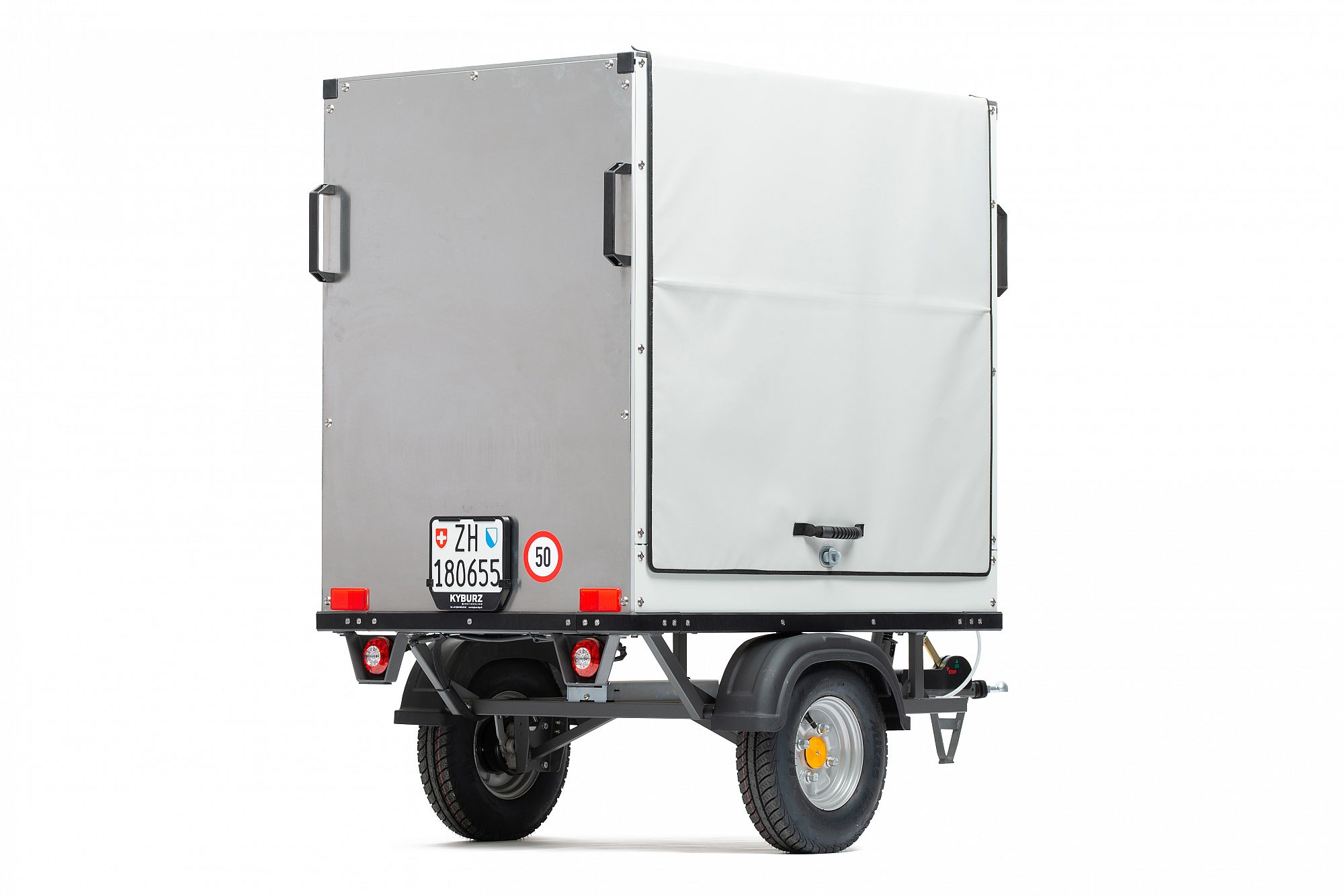

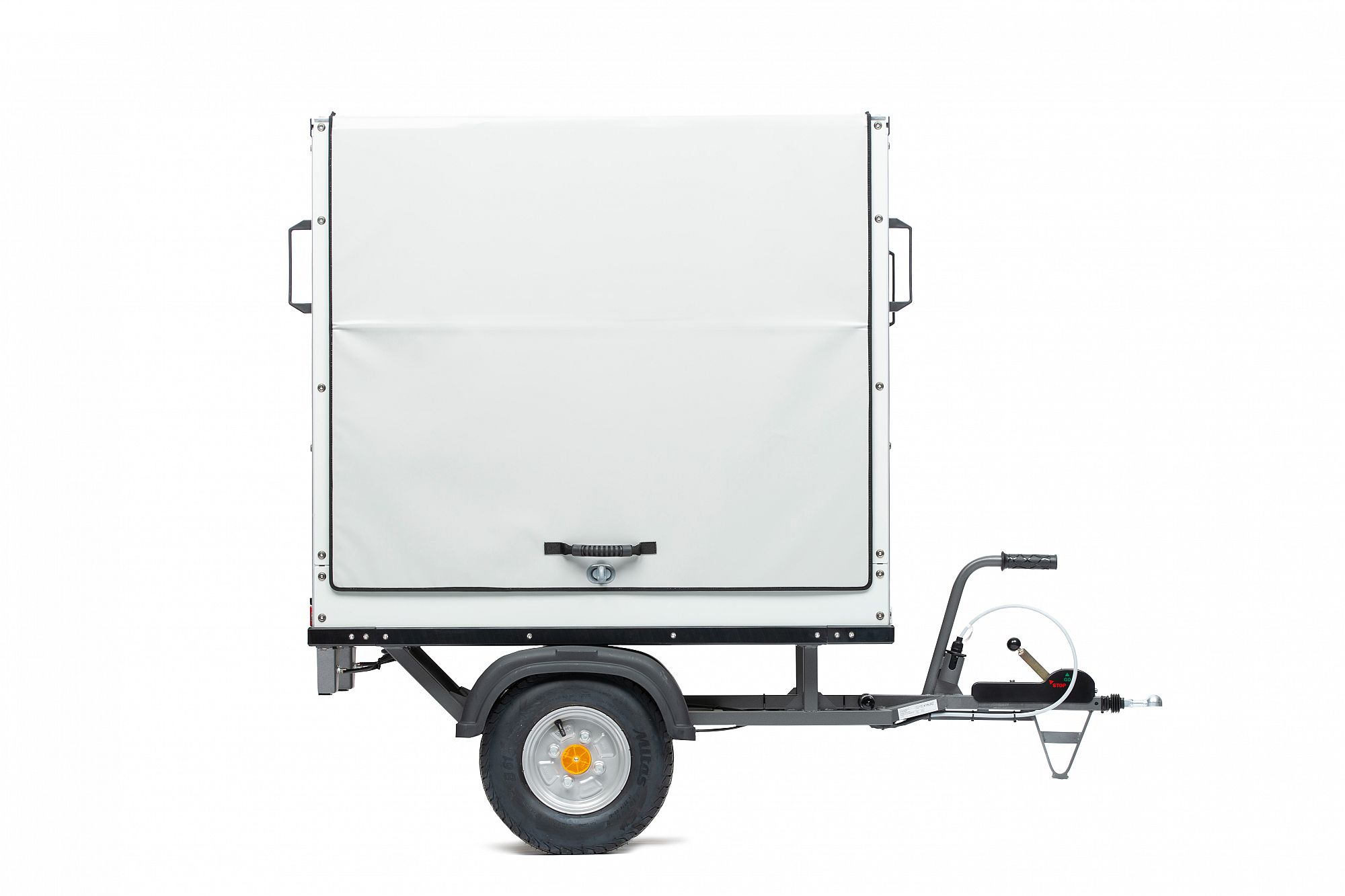

The KYBURZ PAH-F in the picture
