PXS - The power storage for your home

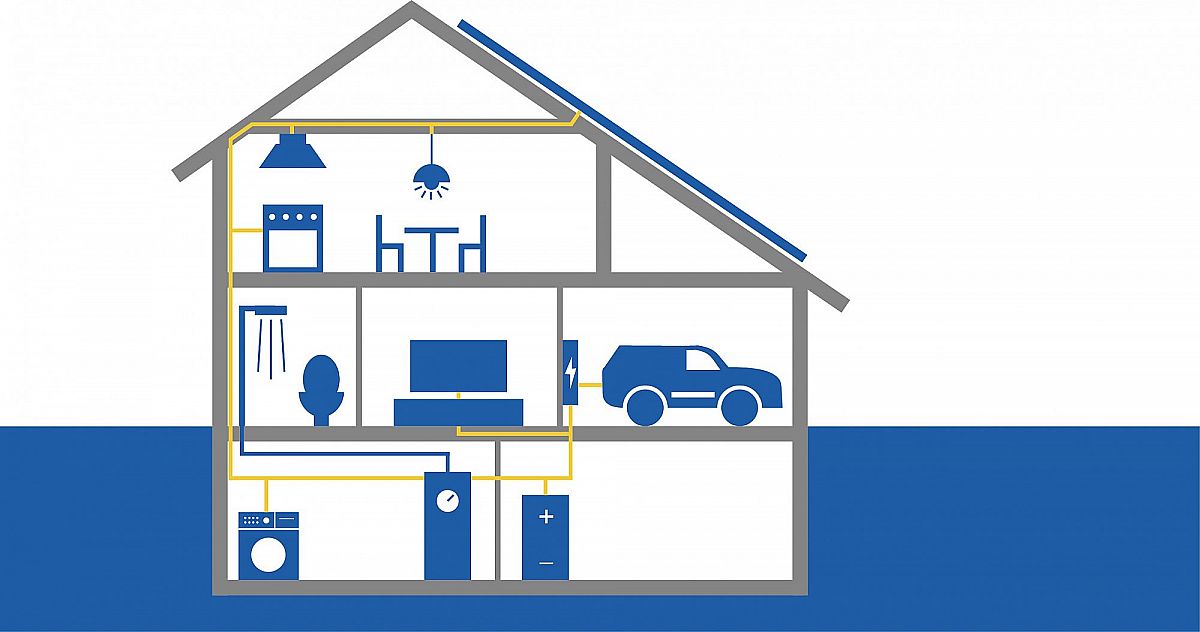

Use your own solar power for the household, charge your electric vehicle completely CO2-neutral or operate your heat pump. For example, the heat pump for a Minergie house with a heating requirement of 6 MWh p.a. can easily be operated 100 percent with your own solar power.
Modularly expandable
The capacity of KYBURZ PXS can fully adapt the capacity of KYBURZ PXS to your needs. So it can easily be designed to fit the capacity of your solar system and your personal power needs. If your needs change, the system can always grow with additional modules.
Flexible
KYBURZ PXS can be installed in new construction projects and as a retrofit solution for existing PV systems. Of course, operation as a stand-alone solution is also possible.
Three-phase designed for Swiss power grid
KYBURZ PXS supplies all three phases of your power connection. This means that all appliances in the household can run, regardless of their location or technical design.
Fully emergency power capable
Our solution ensures self-sufficiency even in the event of a complete failure of your utility's power grid. You are guaranteed not to be left in the dark.
Technical specifications:
| S | M | L | |
| Blocks | 1 block | 2 blocks | 3 blocks |
| Usable capacity | 4.8 kWh | 9.6 kWh | 14.4 kWh |
| Battery technology | LiFePO4 | LiFePO4 | LiFePO4 |
| Output | Three-phase with 230 V AC (L‑N) / 400 VAC (L-L) |
Three-phase with 230 V AC (L‑N) / 400 VAC (L-L) |
Three-phase with 230 V AC (L‑N) / 400 VAC (L-L) |
| Max. Charging power | 9.6 kW | 9.6 kW | 9.6 kW |
| Dimensions (LxWxH) | 400 x 300 x 800 mm | 800 x 300 x 800 mm | 1200 x 300 x 800 mm |
| Weight | 86 kg | 172 kg | 258 kg |
| Installation | Floor or Wall mounting |
Floor or Wall mounting |
Floor or Wall mounting |

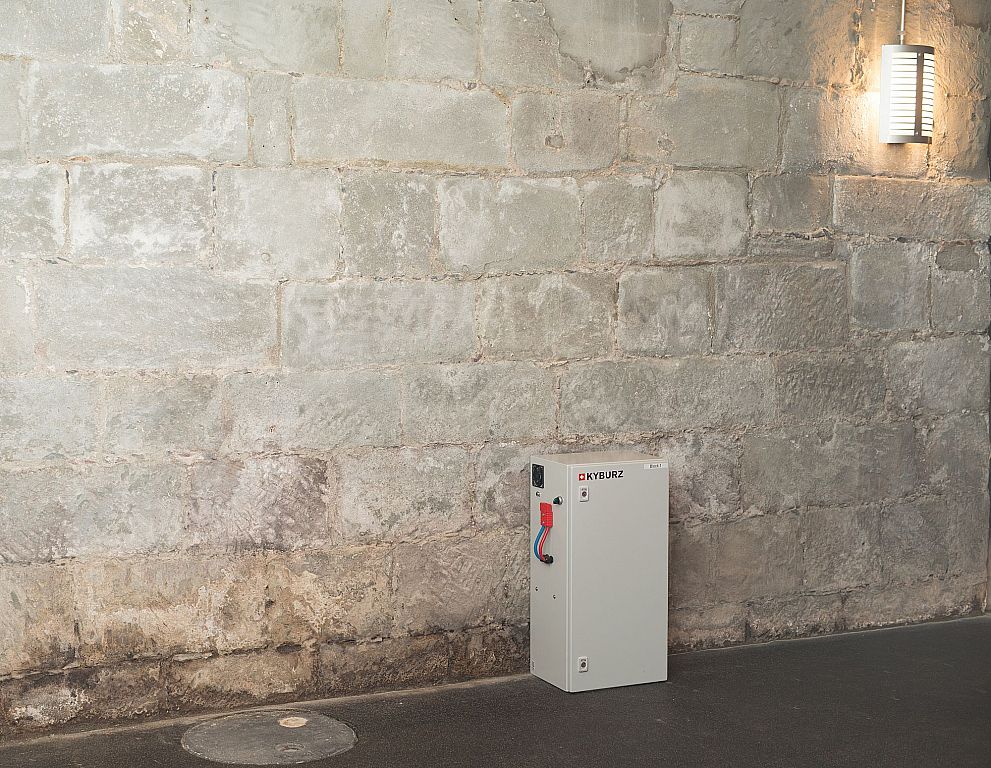

The PXS in the picture
